9UC Now with FTExtract

Discussion in 'Gunsmithing' started by freefire2, Jun 29, 2013.

  1. freefire2

    freefire2 Well-Known Member

    135
    0
    Why, at the 800 round mark does my always trusty and extremely accurate 9UC Pro give me a failure-to-extract about 2 times per mag? Sometimes the case is left in the chamber and sometimes it is partially pulled out. It just started the last time I was at the range and I assumed that I had let it get too dirty. So I brought it home and gave it a thorough cleaning. I had it back at the range today and it still happened. I let a buddy shoot it to remove the "me factor" and it happened to him, as well. Then I remembered that I had bought a spare slide some time back (had a nickel one and also wanted a black one) and I had it in my range bag. This slide has barely 50 rounds through it so I know the extractor must be like new. Put the new slide on and still had basically the same FTEj's. Seems to me that the common denominator now is the barrel and the mags but, I don't find anything obviously wrong with any of them. Any ideas? Thanks!!

  2. SHOOTER13

    SHOOTER13 RETIRED MODERATOR Lifetime Supporter

    5,638
    170
    Are you using FMJ or HP's !?

    Can you post a pic of the feed ramp and the mag lips...

    Basically...you're saying the FTE is in the chamber...with the next bullet either under the spent case or in a stovepipe...correct !?


  3. Pancho_Villa

    Pancho_Villa Well-Known Member Lifetime Supporter

    5,501
    487
    The FTExt leaving the empty case fully or partially chambered, or both? Sounds like the case if dropping free of the extractor claw before it is hitting the ejector. I would be suspicious of the rounds in the mag being a bit to far out and striking the empty from below as it is being pulled out of the chamber. I did not notice in yoour post that you have tried other mags?

    Have you ever fired aot of laquer coated ammo it the gun while the barrel was hot? That can cause problems is some guns if the laquer starts to melt and stick in the barrel. If you have not fired any of it usually the commie stuff, you can rule that out.

    You may also want to check the ejector also. if it is damaged, it may not be driving the case completely out, before the next round is picked up.

    If you are in a safe area, you may want to manually cycle a mag live rounds through the gun and see if there are any cycling problems with the live ones also. You may want to try a couple of mags. Cycle it slow and fast to see if it drops a round halfway or just doesn't pull it out at all.

    Last edited: Jun 29, 2013
  4. freefire2

    freefire2 Well-Known Member

    135
    0
    I am using both FMJ's and HP's and it really doesn't seem to matter.

    Mainly what I'm seeing is the spent case is half way out, the next round in the mag pressing up and the slide has moved forward pressing against the rear of the next round up but, can't advance. I have seen a couple of spent rounds still fully in the chamber and the slide locked open. Those must have been the last round and an empty mag.

    I agree, it appears that the case is dropping free of the extractor. I inspected a couple of the rims and found no damage as if the extractor might have pulled through the rim.

    I have only tried the two mags that I have; none others. I just tested both mags and they cycle all rounds fine.

    I have shot very few lacquer coated rounds so I don't think that applies.

    Pictures below as requested. Also a view of the underside of the slide. I did notice a groove on the side opposite the extractor that appears to be worn into the slide. It is not in the newer black slide that I have or it is at least, not as prominent.

    Thanks for your help!

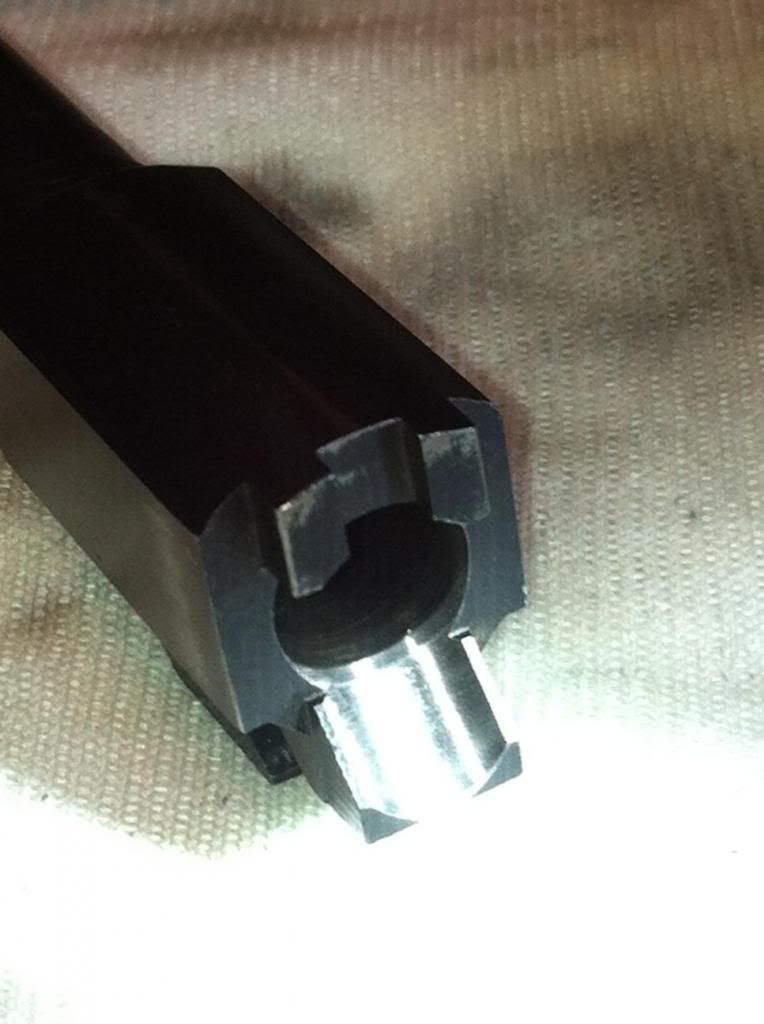

    FEED RAMP
    [​IMG]

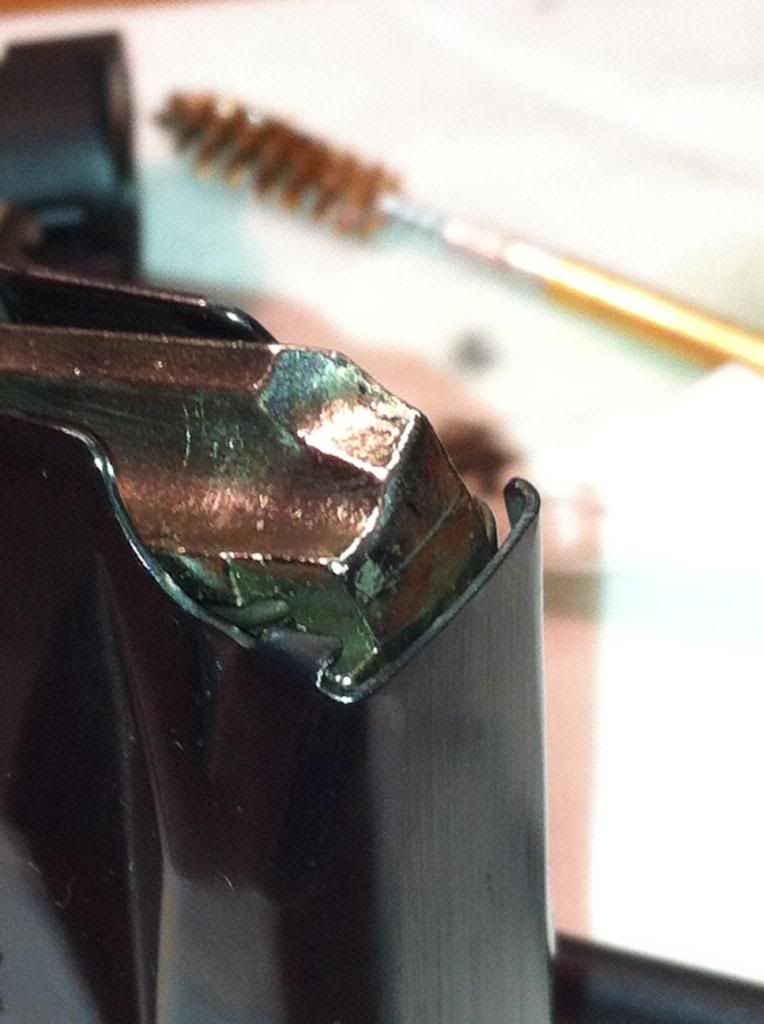

    MAG #1
    [​IMG]

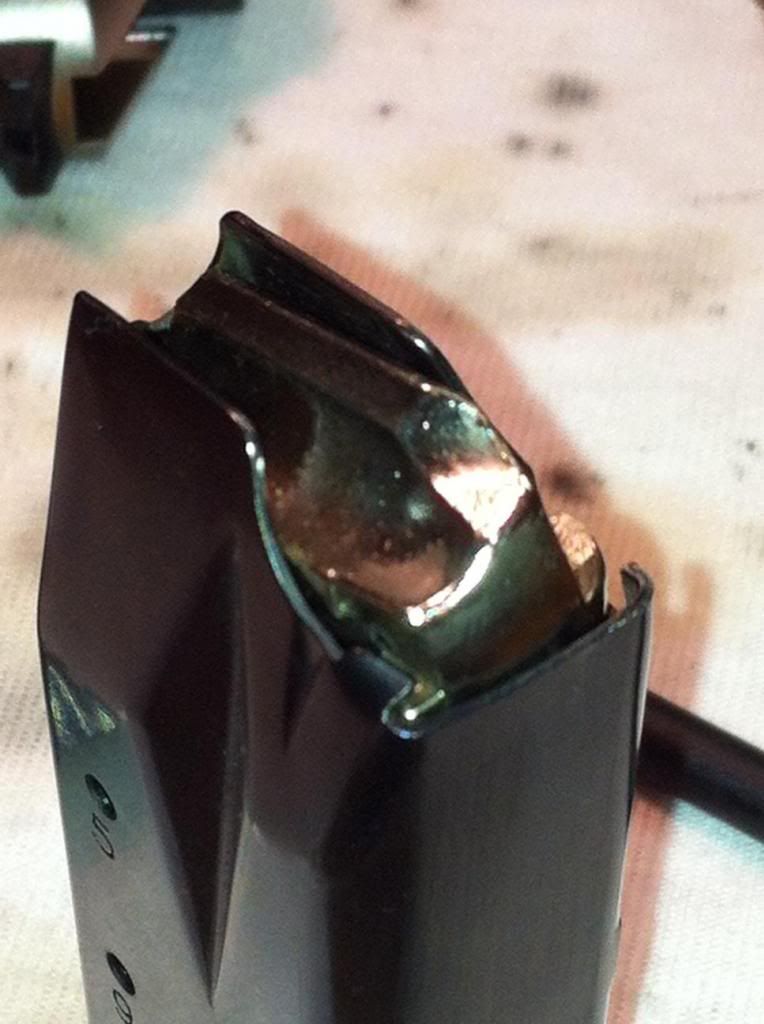

    MAG #2
    [​IMG]

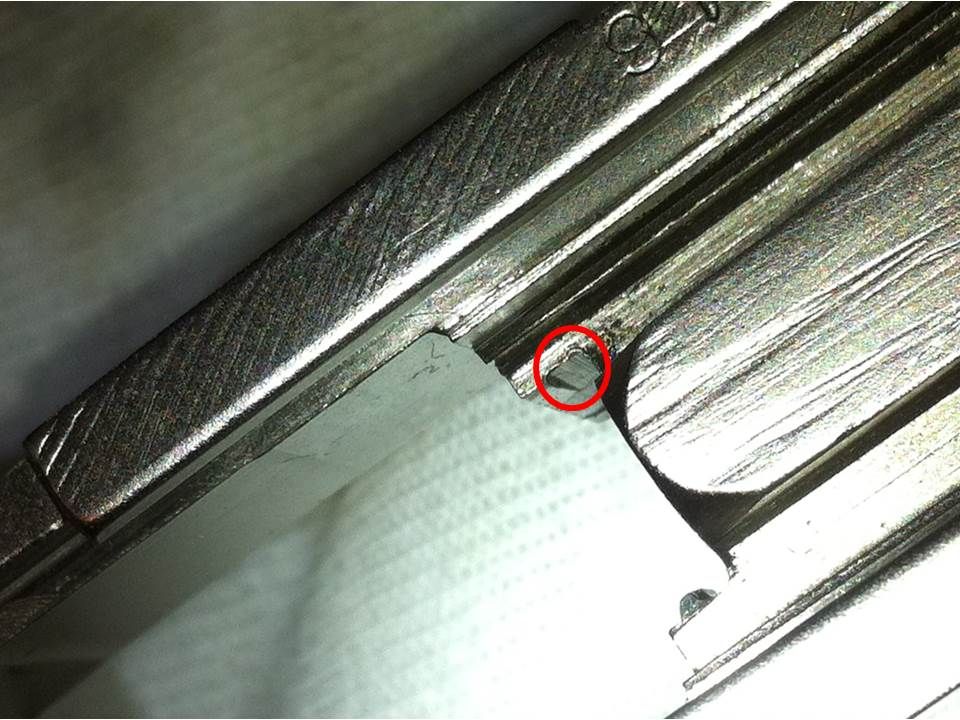

    SLIDE GROOVE (CIRCLED IN RED)
    [​IMG]

  5. freefire2

    freefire2 Well-Known Member

    135
    0
    So, I got brave and removed the extractor from the slide. Not really that hard to do, just had to knock the pin out. I did this after about an hour of manually cycling very slowly and watching how the round reacts and I came to the conclusion that the round is held too loosly. So I filed down the extractor "web" thus allowing it to pivot more towards the firing pin. This allows it to hold tighter on the extractor rim of the shell casing. I'll get to the range soon and see what happens.

  6. freefire2

    freefire2 Well-Known Member

    135
    0

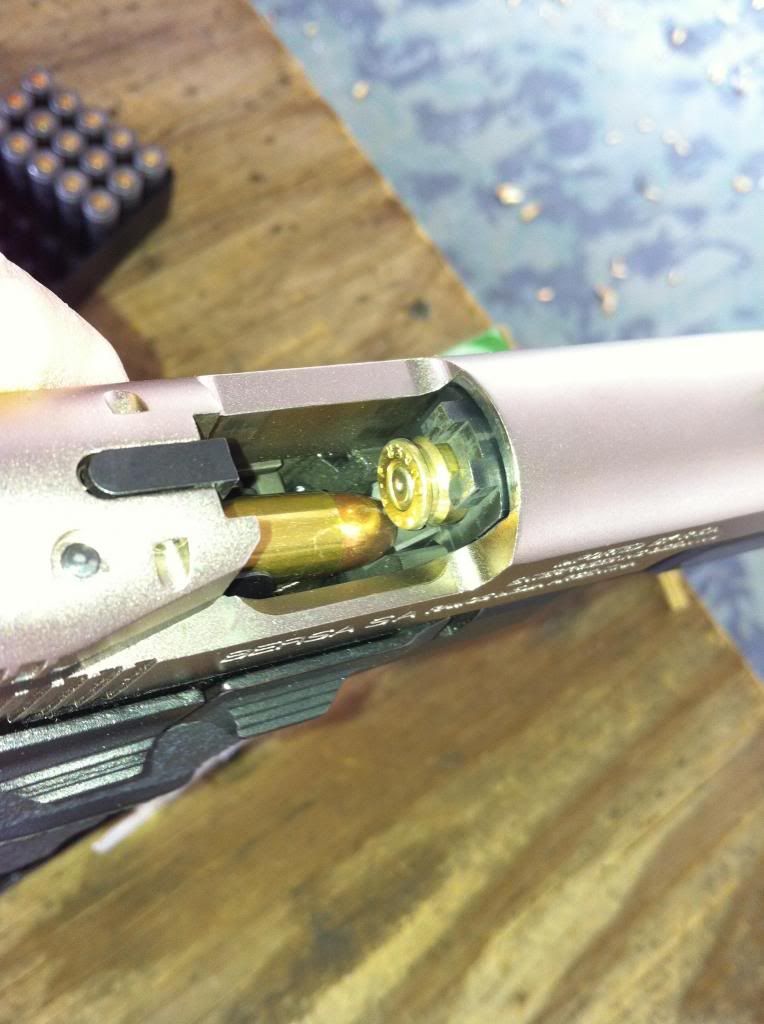

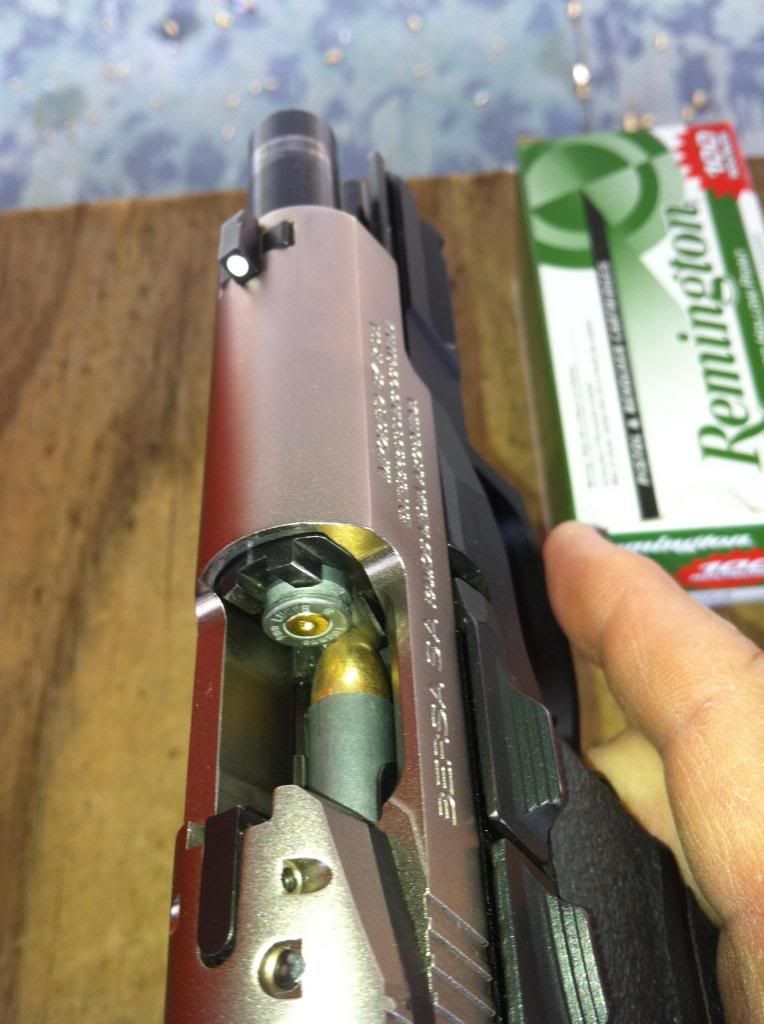

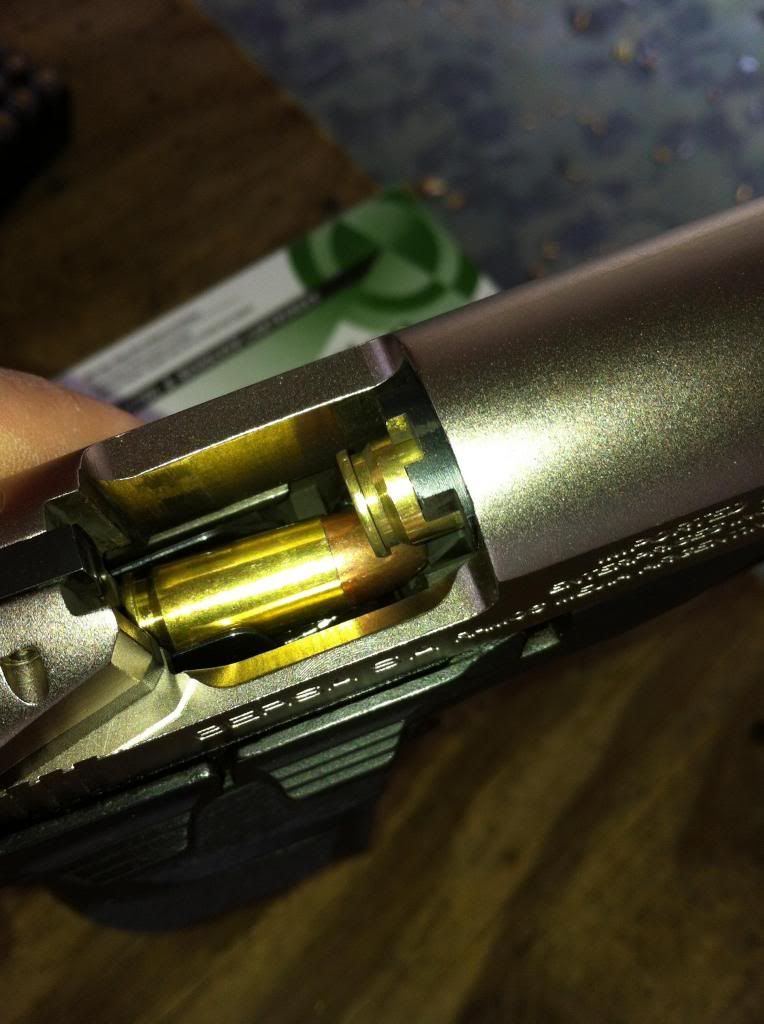

    Well, that didn't help much. Went to the range today and shot about 85 rounds. Still had several, many, too many FTEx's. it just seems that the extractor is turning loose of the casing when it's about 1/3 of the way out of the chamber. Maybe I need a new extractor??

    Added photos for what it's worth. . . .

    [​IMG]

    [​IMG]

    [​IMG]

    Last edited: Jul 6, 2013
  7. SHOOTER13

    SHOOTER13 RETIRED MODERATOR Lifetime Supporter

    5,638
    170
    Good photos...maybe a new extractor is in order !

  8. hobbles

    hobbles Junior Member

    369
    0
    I take a can of WD-40 and force the spray down the firing pin hole, as well as every place else and watch the black come out. Then I use my air compressor and blow the rest of the black out. You will be surprised how much comes out. Then I will clean and oil it. Seems to help.


    [​IMG]

  9. freefire2

    freefire2 Well-Known Member

    135
    0
    Thanks for the tip hobbles. When I took the extractor out of it last week I was able to clean the black gunk out of it directly that way.

    After further thought, I think another angle on this is that maybe something is holding the spent case in the chamber too tightly. Pancho suggested earlier that it might be lacquer in the barrel so that got me to thinking along those lines.

    So, I used my Dremel with a fiber spindle and rouge to polish the chamber interior. I can't say that it's highly polished but, I spent about 20 minutes on it.

    I also thought that maybe the recoil springs are too limp thus allowing the slide to move rearward too soon. So I stretched both springs a bit to increase their resistance.

    And to top that off, I just ordered new recoil springs, new extractor and extractor springs.

    We'll just have to see what happens the next time I'm at the range :)

  10. DEAHEAT

    DEAHEAT Member

    5
    0
    Someone has been shooting Russian

    [​IMG]

  11. hobbles

    hobbles Junior Member

    369
    0
    Mornin freefire2,

    I read some where that the recoil springs had to be put in a certain way. I can't remember where that info is, but was wonderin if you were aware of that. If you need the info, I can go lookin for it.

  12. hobbles

    hobbles Junior Member

    369
    0
    The tight end of the springs goes breech. If the guide rod go into the slid easy, the spring is backwards.


    Did you take any pictures of when you removed the extractor????? I would like that info.

    Last edited: Jul 9, 2013
  13. freefire2

    freefire2 Well-Known Member

    135
    0
    Yup, on a limited basis. I occassionally have run a box of 50 through just because it was all I can find. I was trying it here, along with some Rem to see if there was any difference in the extractor malfunctions. It didn't seem to make much difference.

    Hey hobbles. Yeah, I was aware of the recoil spring placement. Thanks for checking.

  14. freefire2

    freefire2 Well-Known Member

    135
    0
    hobbles- sorry, no I did not take any pics of when I had the extractor out. It was a fairly easy process though. Just let me know if you'd like me to explain the process and I'd be glad to :)

  15. DEAHEAT

    DEAHEAT Member

    5
    0
    Yeah its super hard on extractors i hear, honestly i would of just called up NJ and got a free replacement or just sent it back to them. Your going to end up voiding the warranty most likely. Bersa is top notch but i have noticed lately there QC has been slacking. BP's with off sights, some UC's with messed up finishes. My Thunder 9 had rear sights that could only be described as peeling off

  16. hobbles

    hobbles Junior Member

    369
    0
    Mornin freefire2,
    When you have time, I would like to hear bout how you did it. I will save your info in my Bersa storage directory for when I need it. I like to do my own repair on my weapons. Thanks,,, again.

  17. freefire2

    freefire2 Well-Known Member

    135
    0
    DEAHEAT- you know, I never thought about the "voiding the warranty" aspect. I read the warranty earlier this week and it does not cover "normal wear" which I figured this was.

    hobbles- most likely when my new extractor comes in I will install it. When I do, I will shoot some photos and give you some comentary. It really is very easy as long as you have the proper drive-pin punch. I'll let you know what size I used, too.

  18. hobbles

    hobbles Junior Member

    369
    0
    Thanks freefire2, I learned long time ago that any thing is easy,, as long as you know how to do it.

  19. freefire2

    freefire2 Well-Known Member

    135
    0
    Still waiting on "parts in the mail". Stay tuned :)
